ABA / RSVP Flooring: Vinyl Layers Above and Below a Rigid SPC Core
ABA flooring is a three-part rigid click floor: a vinyl (LVT) layer, a rigid SPC core, then another vinyl layer, which is where the A-B-A name comes from. Ecoflors makes it at our Jiaxing factory in 4.5–8.0 mm, as planks up to 228 × 1,820 mm, a 110 × 610 mm herringbone and a 305 × 610 mm tile. An attached underlay is an option, not part of the name. Datasheet and test documents are matched to the SKU you quote.
- 4.5–8.0 mm
- Plank · herringbone · tile
- Underlay optional
- Private label on request
- Thickness
- 4.5–8.0 mm
- Longest plank
- 1,820 mm
- Wear layer
- 0.2–0.7 mm
- Made in Jiaxing, ChinaABA is made at our main factory in Jiaxing, which also makes our SPC and LVT flooring.
- Seven formatsFive plank sizes, one herringbone and one tile, in five thicknesses.
- Documents per SKUFire, emissions and acoustic reports are matched to the build and market you quote, or we tell you we don’t hold one.
- Your brand or oursPrivate-label cartons and labels, with conditions confirmed per order. Learn More About Ecoflors
What ABA means

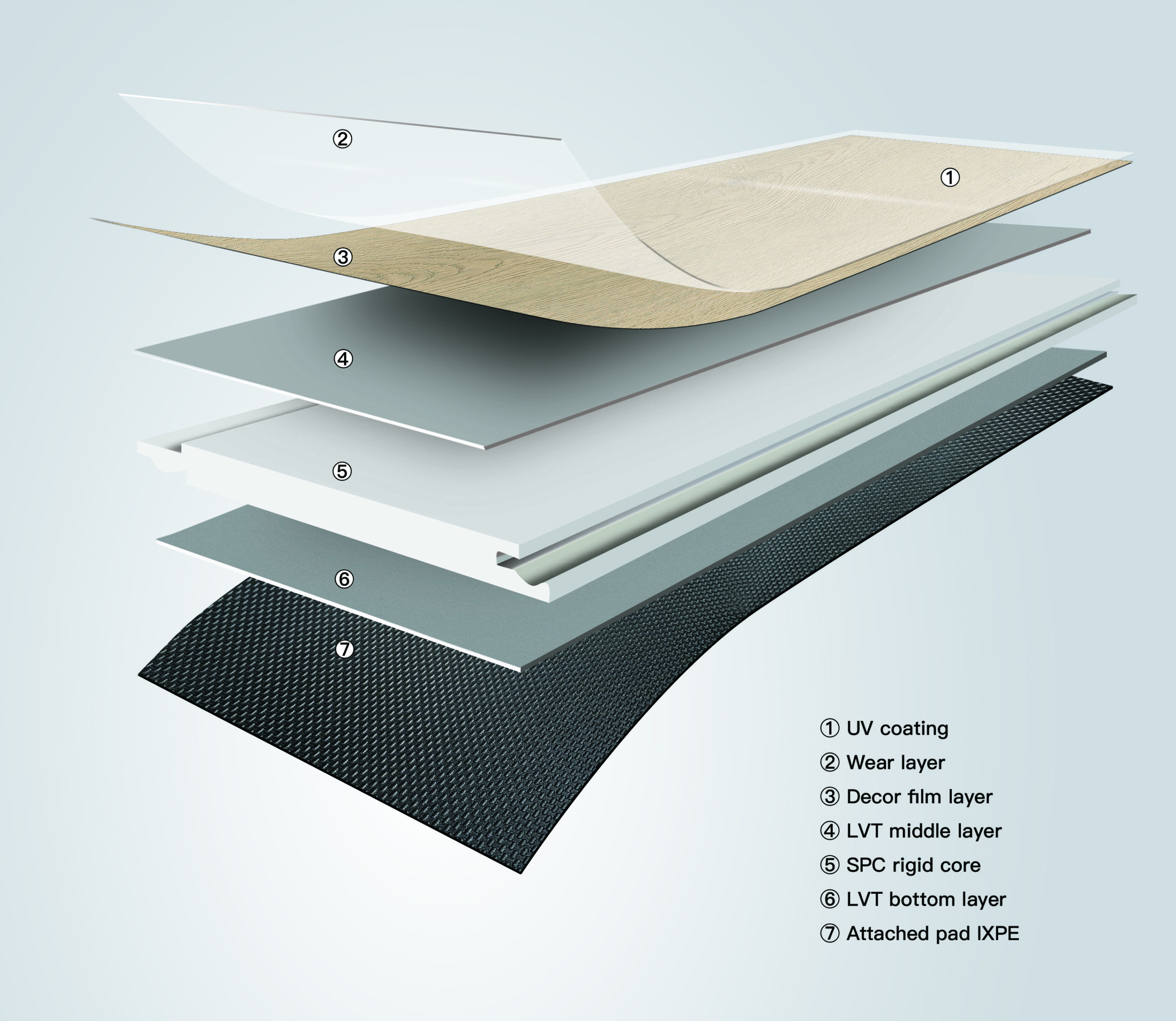

Inside an ABA Board
Short answerIn ABA flooring, “A” is a vinyl (LVT) layer and “B” is the rigid SPC core. The core sits between two vinyl layers, with the printed decor and wear layer on top. Some listings expand ABA as “acoustic backing attached”. That is not what the name means here: an attached underlay is a separate option chosen per SKU.
Ecoflors also lists this range as RSVP, and in several markets the same build is sold as ABA hybrid flooring. What matters on an order is the layer build written on the datasheet, not the trade name.
Surface coating and wear layer
Wear layer 0.2–0.7 mm, chosen per SKU. Coating and gloss per decor.
Printed decor film
Wood, stone or carpet-texture visual.
A: top vinyl layer
LVT layer bonded above the core.
B: rigid SPC core
Stone-plastic composite, carries the click profile.
A: bottom vinyl layer
LVT layer bonded below the core.
Attached underlay (optional)
Material and thickness confirmed per SKU, or supplied without.
Layer thicknesses inside the board vary by build and are given on the datasheet for the SKU. If your market needs a specific underlay (for example an IXPE pad of a set thickness), say so at enquiry and we confirm what can be attached.
The decision on this page
ABA Hybrid Against Standard SPC Click
Both are rigid click floors and share several datasheet values. The difference is the build around the core. Values below are datasheet design values, not third-party test results.
| What you are comparing | ABA hybrid / RSVP | Standard SPC click |
|---|---|---|
| Build | Vinyl layer, SPC core, vinyl layer | Decor and wear layer on an SPC core |
| Thickness range | 4.5–8.0 mm | 3.2–8.0 mm |
| Density | 1.80–1.95 g/cm³ | 1.95–2.05 g/cm³ |
| Wear layer options | 0.2 / 0.3 / 0.4 / 0.5 / 0.55 / 0.7 mm on both | |
| Dimensional stability | ≤0.12 % to ISO 23999:2021 on both | |
| Curling · squareness | ≤1.0 mm · ≤0.15 mm on both | |
| Attached underlay | Optional, per SKU | Per SKU |
| Acoustic ratings | Not published as range values. A rating belongs to a tested floor-ceiling assembly; see acoustic documentation | |
Formats and datasheet values
ABA / RSVP Sizes & Specification
Seven formats, each in 4.5, 5, 6, 7 or 8 mm. Inch values are rounded conversions for North American price lists; the metric size on the datasheet governs.
| Format | Size (mm) | Approx. inches | Thickness options |
|---|---|---|---|
| Herringbone | 110 × 610 | 4.3 × 24.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Plank | 150 × 1,220 | 5.9 × 48.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Plank | 183 × 1,220 | 7.2 × 48.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Plank | 228 × 1,220 | 9.0 × 48.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Plank | 228 × 1,524 | 9.0 × 60.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Long plank | 228 × 1,820 | 9.0 × 71.7 | 4.5 / 5 / 6 / 7 / 8 mm |
| Tile | 305 × 610 | 12.0 × 24.0 | 4.5 / 5 / 6 / 7 / 8 mm |
| Property | Value | Method / note |
|---|---|---|
| Wear layer | 0.2 / 0.3 / 0.4 / 0.5 / 0.55 / 0.7 mm | About 8 / 12 / 16 / 20 / 22 / 28 mil |
| Density | 1.80–1.95 g/cm³ | Per datasheet |
| Dimensional stability | ≤0.12 % | ISO 23999:2021 |
| Curling | ≤1.0 mm | Per datasheet |
| Squareness / straightness | ≤0.15 mm | Per datasheet |
| Edge and joint | Click joint; edge finish per decor | Lock profile and bevel confirmed per SKU |
Decor families
Wood, Stone and Carpet-Texture Visuals
Decor availability depends on format and thickness. Ask for the current colour list for the format you plan to stock.
-

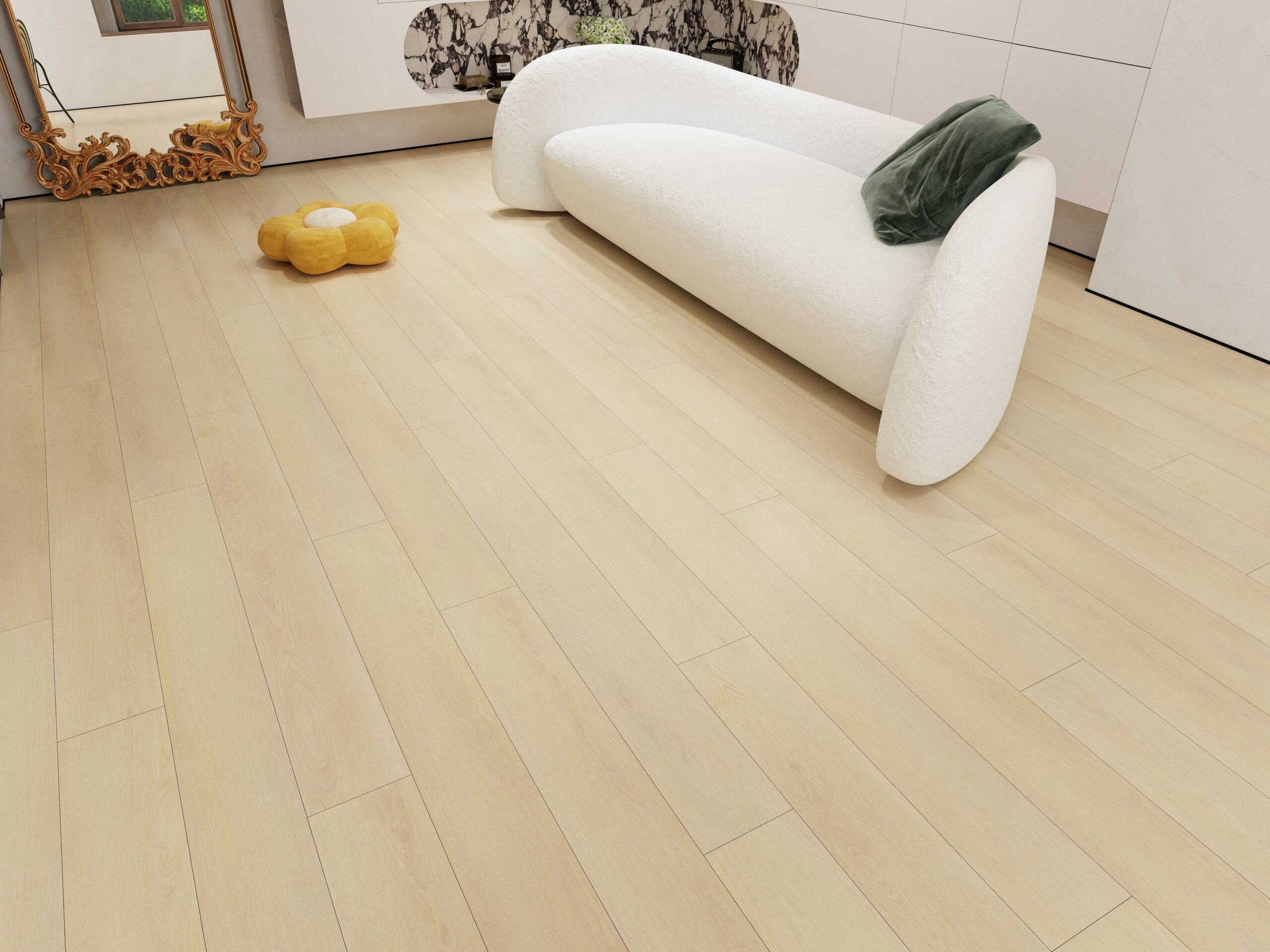

Wood, EIRPlank · herringboneEmbossed-in-register surface: the texture follows the printed grain. Used for plank and herringbone ranges.
-
Stone & marbleTileMarble, stone and concrete visuals, mainly in the 305 × 610 mm tile. Click joints, so no grout lines to fill.
-
Carpet texturePer formatThe look of commercial carpet tile on a hard click floor. Available formats confirmed with the colour list.
Acoustic documentation
IIC, STC and ΔIIC: What a Rating Actually Covers
An IIC or STC rating describes a whole floor-ceiling assembly: slab or joists, ceiling, insulation, underlay and floor covering together. The same board can rate very differently over a bare concrete slab and over a slab with a suspended ceiling. STC depends mainly on the structure; a floor covering changes it little. That is why we don’t print one acoustic number for the ABA range.
Tests Buyers Ask For
| Rating | Test | What it describes |
|---|---|---|
| IIC (impact) | ASTM E492 lab · E1007 field | Footfall and impact sound through the tested floor-ceiling assembly |
| STC (airborne) | ASTM E90 lab · E336 field | Airborne sound isolation of the tested assembly |
| ΔIIC | ASTM E2179 | Impact-sound improvement a floor covering adds over a bare concrete slab |
| ΔLw (EU / ISO) | ISO 10140-3 · ISO 717-2 | Reduction in impact sound level from a floor covering on a reference slab |
What We Supply
Tell us the assembly your acoustic consultant is working with and the rating the project names. We reply with the report we hold for that board and underlay build, or tell you plainly that we don’t hold one. Where a new test is needed, the build, lab and cost are agreed before the order.
The same rule applies to fire and emissions documents. A floor fire class or a low-VOC certificate covers the tested product, so we match reports to the SKU and market; see certifications.
Points to Settle Before You Order
-
Underlay or no underlayEvery order
What to check
Name the underlay material and thickness if your market or project specifies one. It changes the total thickness, the carton weight and which acoustic reports are relevant.
-
Acoustic targetMulti-storey projects
What to check
Ask for the report that matches your assembly before you commit to a SKU. A rating from a different slab or ceiling build does not transfer.
-
Format and thicknessPer SKU
What to check
Confirm the lock profile, bevel and decor list for the exact format. Not every decor runs in every size.
-
Market documentsPer market
What to check
List the documents your customs broker and customers ask for. We confirm which ones we hold for the ABA SKU before quotation, not after shipment.
Supply and ordering
Ordering & OEM
Terms we can state before we’ve seen your specification. The rest is confirmed in the quotation.
Ordering Information
- Minimum order
- 800 m² per existing design or colour
- Custom decor
- From 2,200 m² per decor
- Production lead time
- Generally 35–40 days, reconfirmed when the order is placed
- Quotation basis
- FOB Shanghai is the default quotation basis. Other ports can be coordinated when required.
- Samples
- On request. See sample requests.
- Customs classification
- Confirmed by the importer or customs broker for the destination
- Container loading
- Calculated per format and thickness in the quotation
- Payment terms
- Confirmed in the quotation
OEM & Private Label
ABA / RSVP can ship under your brand, with cartons and labels printed to your artwork. Test reports stay in the name of the holder that obtained them; if your market needs documents in your own company name, tell us at enquiry. The OEM and private-label programme covers artwork, approvals and the first-order sequence.
Buyer questions
ABA / RSVP Flooring FAQs
What does ABA mean in flooring?
It describes the layer order: A is a vinyl (LVT) layer, B is the rigid SPC core, so an ABA board has vinyl above and below the core, with the decor and wear layer on top. It is not short for “acoustic backing attached”. An attached underlay is a separate option on Ecoflors ABA.
Is RSVP the same product as ABA?
On ecoflors.com, yes: ABA / RSVP is one range. Other suppliers use these names differently, so compare the layer build on each datasheet rather than the trade name.
Is ABA the same as hybrid flooring?
Not always. In Australia and New Zealand, “hybrid flooring” usually means any rigid core click floor, most often standard SPC. ABA hybrid is one specific build within that group: vinyl layers above and below the SPC core. When a customer asks for hybrid, check which build they mean. We make both; standard rigid core is on our SPC flooring page.
What sizes and thicknesses are available?
Planks of 150 × 1,220, 183 × 1,220, 228 × 1,220, 228 × 1,524 and 228 × 1,820 mm, a 110 × 610 mm herringbone and a 305 × 610 mm tile. Each comes in 4.5, 5, 6, 7 or 8 mm. Wear layers run from 0.2 to 0.7 mm (about 8 to 28 mil).
Does ABA flooring come with an attached underlay?
It can. Whether an underlay is attached, and its material and thickness, is chosen per SKU. Tell us what your market expects and we confirm what can be attached and how it changes total thickness and carton weight.
What IIC and STC ratings does ABA achieve?
We don’t publish range-wide ratings, because IIC and STC describe a whole floor-ceiling assembly, not a board. Send us your assembly and the rating your project names (in the US, the International Building Code asks for 50 between dwelling units in lab tests). We reply with the report we hold for that build, or tell you we don’t hold one.
Which certificates come with ABA for the US or EU?
Documents are matched to the SKU and destination at quotation. Fire classes, low-VOC certificates and slip ratings cover the tested product, so a report for one build doesn’t automatically cover another. List what your customers ask for and we confirm what we hold before you order.
What is the minimum order, and can I private-label?
800 m² per existing design or colour, and from 2,200 m² for a custom decor. Production lead time is generally 35–40 days, reconfirmed when the order is placed. Private-label cartons and labels are available, with conditions confirmed per order.
Quotation
Send Your Project Requirements
Name, company, country, email and an estimated area are enough to start. Add any of these and the reply comes back matched to your order:
- Format and thickness, if already fixed
- Wear layer and decor codes or the look you need
- Underlay: attached, loose or none, with material and thickness
- Acoustic, fire or emissions documents your market asks for
- Quantity per colour, destination port and target delivery month
